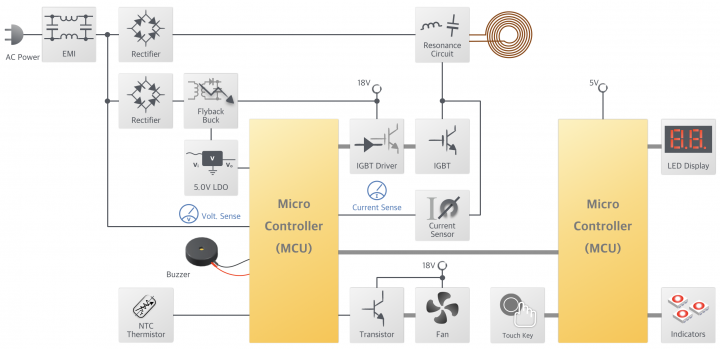

No.WAS-2041
| ? Induction Cooker Flash?MCU( ? 本?案使?項? △ 其他相關項? ) | |||||||||||||
| Part Number | VDD | IO/ADC | TIMER | ROM/RAM/EEP | CLOCK | Others | Package | ||||||
| ? | HT45F0058 | 3.3V~5.5V | 13/12-bit×10 | 3 | 4KW/256B/32B | 16MHz HIRC | PPG, OPA, OVP, Comparator |
16NSOP | |||||
| ? Enhanced Touch A/D Flash MCU with?LED?Driver( ? 本?案使?項? △ 其他相關項? ) | |||||||||||||
| Part Number | VDD | IO/ADC | TIMER | ROM/RAM/EEP | CLOCK | Interface | Others | Package | |||||
| ? | BS86D12C | 2.2V~3.6V | 26/12-bit×8 | 2 | 8KW/512B/64B | 8/12/16MHz HIRC | UART, I2C | High Current LED Driver |
24 /28 SOP 24 /28 SSOP |
||||
| BS86D20C | 3 | 8KW/768B/64B | I2C, SPI, UART | 24 /28 SOP | |||||||||
應用領域
電磁爐、IH電飯煲、IH奶泡機
專用硬件抖頻
提升運作效能，控制效果更精細。
低零件成本
MCU內建比較器與放大器，抖頻可降低元件規格。
